Bolted Joint Bus Bar
400 INR/Meter
Product Details:
X
Bolted Joint Bus Bar Price And Quantity
- 400 INR/Meter
- 4.5 Meter
Bolted Joint Bus Bar Trade Information
- 2000 Meter Per Month
- 1 Days
- All India
Product Description

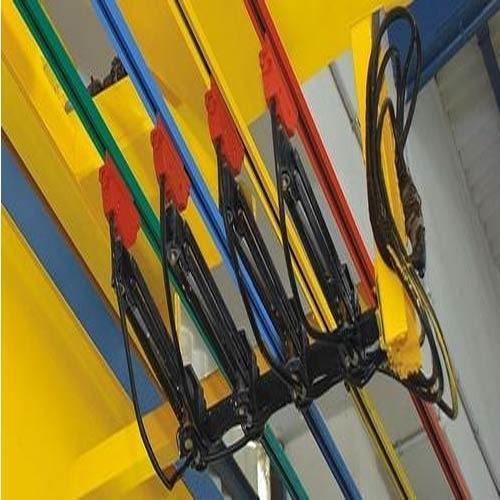

We are a well-known organization that is engaged in manufacturing and supplying Bolted Type DSL. These products are manufactured under the close supervision of our highly experienced and trained professionals. Used for safe and reliable power transmission for mobile and machine, these are applicable in cranes & hoist, monorails, automated storage system and amusement park rides.
Features:
Range Details:
Bar Length And Track Configuration :
Application :
Specifications:
Accessories Of Safelink W Bolted Type :
Safelink Current Collector :
Hanger Clamp :
Current Collector :
Features:
- Aesthetic
- Durable
- Fine finish
Range Details:
- 60 / 100 / 125- Galvanised Steel
- 160 / 250 / 400- Copper
- 200 / 315- Aluminium / SS
Bar Length And Track Configuration :
- Straight
- Curved
Application :
- Cranes & Hoist
- Monorails
- Automated Storage System
- Amusement Park Rides
- Transfer Car
- Quenching / Pusher Car For Coke Oven
Specifications:
- Insulated Conductors are touch proof, no exposed live parts to contacts
- Quick & Easy Installation with single bolt, 4 Pole Hanger
- 60 to 400 Amps Conductor in same standard
- 60, 100 & 125 Amps in Galvanized Steel
- 200 & 315 Amps in Aluminium/S.S
- 160, 250 & 400 Amps in Rolled Copper
- 4.5 Meters Bar Length
- Cover Designed to shed water and dust
- Joint Cover provides total protection of joints
- Enclosed Wiring for connection on collectors for safe and simple installation
- No Expansion Joints upto 150 Meters long System
- Slide in slot features for hanger supports to eliminate mis-alignment
- Track Configuration: Straight or Curved
- Operating speed upto 200 Meters / minute
Accessories Of Safelink W Bolted Type :
- Current Collector
- Hanger Clamp
- Anchor Clamp
- Center Power feed
- End Cover
- Current Collector Bracket / Web Bracket
Safelink Current Collector :
- 100 Amp [SLCC100A]
- 125 Amp [SLCC125A]
- 250 Amp [SLCC250A]
- 125 Amp [SLCC125A]
Hanger Clamp :
- 1 Pole Hanger Clamp
- 4 Pole Hanger Clamp
Current Collector :
- Web Bracket
- Current Collector Bracket
